Automatic Batching System For Photovoltaic Quartz Sand Reduction For 3 Kinds Of Quartz Sand Materials (more materials are possible)

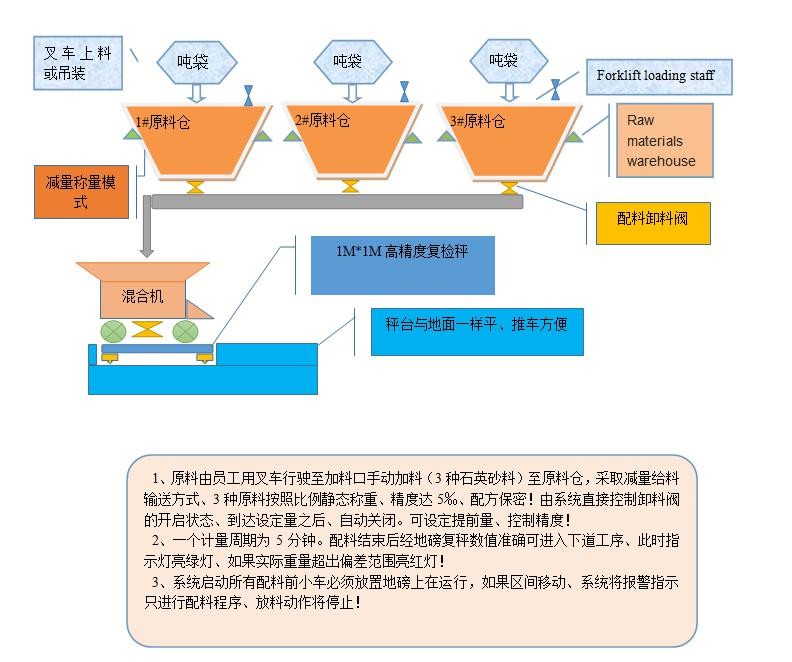

Production introduction:
1. The raw materials are manually fed (3 kinds of quartz sand materials) to the raw material silo by the employees with a forklift truck. The reduced feeding method is adopted. The 3 raw materials are weighed in proportion, with an accuracy of 3‰, and the formula is confidential! The system directly controls the open state of the unloading valve, and automatically closes after reaching the set amount. The advance amount and control accuracy can be set!
2. A measuring cycle is 5 minutes. After the ingredients are combined, the weighing scale is accurate and the value can enter the next process. At this time, the indicator light will be green, and if the actual weight exceeds the deviation range, it will be red!
3. The trolley must be placed on the weighbridge before the system starts all ingredients. If the interval moves, the system will give an alarm indicating that only the batching process will be carried out, and the feeding action will stop

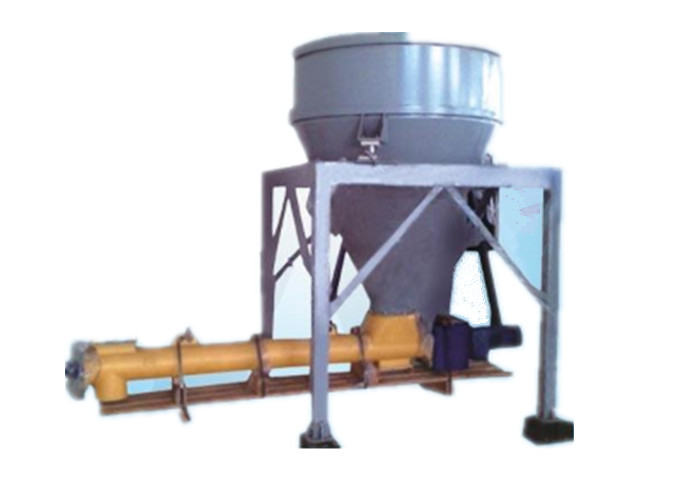

Product name: LOSS-IN-WEIGHT batching scale machine.
Capacity: 100kg (0.5KG TO 500KG is possible, FOR HIGHER CAPACITY, PLS. CONTACT US)
silo size: 300L or make to order
accuracy: C3 / 3000 divisions,/ 0.033kg, or higher accuracy is possible.(WE FOCUS ON HIGHER PRECISION BATCHING SYSTEM.)
Weighing type: loss in weight
Material: stainless steel
Application: quartz sand materials or any kind of other similar material.
output: RS485 output, easily install into your control system.
special function: can set 10 formulas for each batching scale.
advantages: watch-dog software, make the system more reliable.
advatage filter system: make the system more accuracy.
